Manufacture	Bently Nevada
Item No	3500/64M
Article number	176449-05
Series	3500
Origin	United States (US)
Dimension	85*140*120(mm)
Weight	1.2kg
Customs Tariff Number	85389091
Type	Dynamic Pressure Monitor

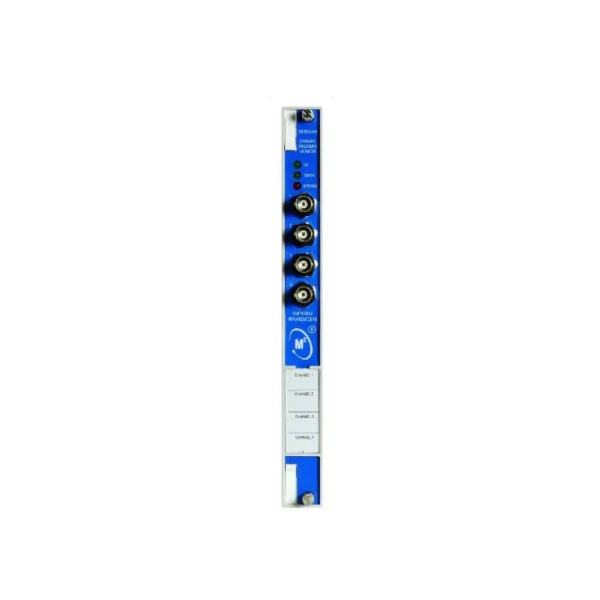

3500/64M 176449-05 Bently Nevada Dynamic Pressure Monitor The 3500/64M Dynamic Pressure Monitor is a single slot, four channel monitor that accepts input from a high temperature pressure sensor and uses that input to drive an alarm. One of the measured variables per channel of this monitor is the bandpass dynamic pressure. You can configure the bandpass corner frequency as well as additional notch filters using the 3500 Rack Configuration Software. This monitor provides a recorder output for control system applications The main purpose of the 3500/64M Dynamic Pressure Monitor is to provide the following functions: -Protect the machine by actuating alarms by continuously comparing the monitored parameters to the configured alarm set points -Provide essential machine information to operating and maintenance personnel Depending on the configuration, each channel conditions its input signal to generate various parameters (called measurement variables). You can configure alarm and danger set points for each active measurement variable.Monitor Module (Main Board): Dimensions(Height x Width x Depth) 241.3 mm x 24.4 mm x 241.8 mm(9.50 in x 0.96 in x 9.52 in) Weight 0.82 kg (1.8 lb) I/O Modules (non-barrier): Dimensions (Height x Width x Depth) 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) Weight 0.20 kg (0.44 lb) I/O Modules (with barrier) Dimensions (Height x Width x Depth) 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) Weight 0.46 kg (1.01 lb)
