Manufacture	ABB
Item No	DSTD W130
Article number	57160001-YX
Series	Advant OCS
Origin	Sweden
Dimension	234*45*81(mm)
Weight	0.3kg
Customs Tariff Number	85389091
Type	Connection Unit

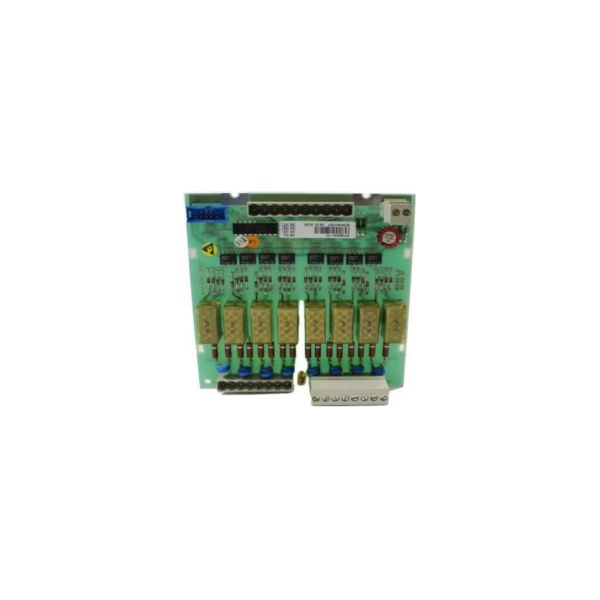

 ABB DSTD W130 57160001-YX Connection Unit The ABB DSTD W130 57160001-YX is part of the ABB I/O module family and is used in process automation systems to integrate field devices with control systems. It is used to process digital or analog signals. In an industrial automation environment, a device like this might convert an analog signal from a sensor into a digital signal so that the control system can read and process it. Converting a 4 - 20mA current signal or a 0 - 10V voltage signal into a digital quantity is like the function of a signal transmitter.It has a communication interface for data exchange with other devices. It supports Profibus, Modbus or ABB's own communication protocols, so that it can send processed signals to the upper control system or receive instructions from the control system. In an automated factory, it can send the status information of production equipment to the monitoring system in the central control room. It also has certain control functions, such as controlling the operation of external equipment according to the received signals or instructions. Suppose in a motor control system, it can receive the speed feedback signal of the motor, and then control the motor driver according to the preset parameters to adjust the speed of the motor. In chemical plants, it can be used to monitor and control the parameters of various chemical reaction processes. It can connect various field instruments, process the collected signals and transmit them to the control system, thereby realizing the automated management of the chemical production process.Frequently asked questions about the product are as follows: -What is ABB DSTD W130 57160001-YX? The ABB DSTD W130 is an I/O module or input/output interface device that integrates field instruments with industrial control systems. The module processes input signals and sends output signals to control actuators, relays, or other field devices. -What types of signals does the DSTD W130 process? 4-20 mA current loop. 0-10 V voltage signal. Digital signal, on/off switch, or binary input. -What are the main functions of the DSTD W130? Signal conversion converts the physical signal of the field instrument into a format compatible with the control system. Signal isolation provides electrical isolation between field devices and the control system, protecting the device from electrical spikes and noise. Signal conditioning amplifies, filters, or scales the signal as needed to ensure accurate data transmission to the control system. Data is collected from sensors or devices and transmitted to the control system for monitoring, processing, and decision making.
