Manufacture	ABB
Item No	FI830F
Article number	3BDH000032R1
Series	AC 800F
Origin	Malta (MT) Germany (DE)
Dimension	110*110*110(mm)
Weight	1.2kg
Customs Tariff Number	85389091
Type	Communication_Module

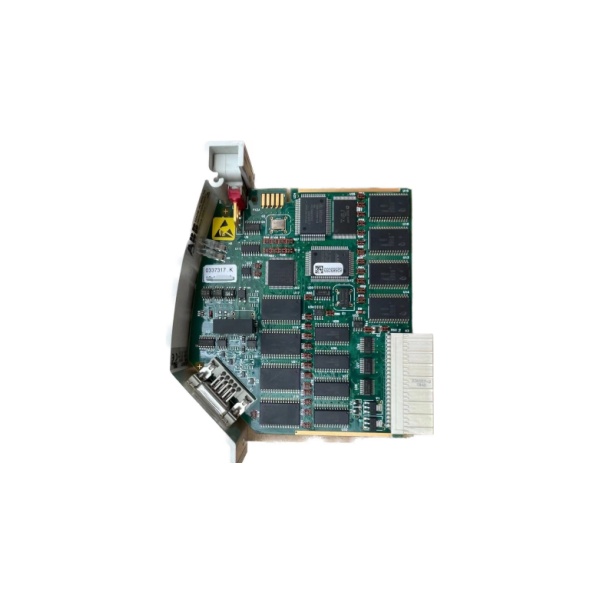

FI830F 3BDH000032R1-ABB Fieldbus Module PROFIBUS-DP Additional Information Medium Description For use together with PM 802F or PM 803F. Technical Information To use together with PM 802F or PM 803F. Product Type Communication_Module Ordering Country of Origin: Malta (MT) Germany (DE) HS Code: 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other Environmental RoHS Status Not RoHs Compliant WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm) Number of Batteries 0 Controller redundancy Controller redundancy can be achieved by installing two AC 800F. To ensure quick and smooth takeover by the secondary AC 800F in case the primary AC 800F fails, a dedicated redundancy communications link through the second Ethernet module makes sure that both AC 800F are always synchronized. All inputs and outputs are designed to support redundant operation. PROFIBUS line redundancy Using the Redundancy Link Module RLM 01 will do the conversion of one simple, non-redundant PROFIBUS line into two reciprocally redundant lines. You can position the Redundancy Link Module RLM 01 directly after a PROFIBUS module (master), before a bus segment with several slaves or before an individual slave. PROFIBUS stations with redundant couplers can be directly connected to the PROFIBUS set redundant by RLM 01. Stations with only one interface can be optionally assigned to the one or other line. An alternative solution to the PROFIBUS line redundancy is to use a Fiber Optic Ring. Controller redundancy together with PROFIBUS line redundancy You can achieve the highest availability when doing both, controller redundancy and PROFIBUS line redundancy by using two AC 800F with one RLM01 each. This topology combines the advantages of controller redundancy with the one of line redundancy as described in the above paragraphs. Controller redundancy together with FOUNDATION Fieldbus redundancy FOUNDATION Fieldbus redundancy can be achieved by installing two LD 800HSE EX. To ensure quick and smooth takeover by the secondary LD 800HSE EX in case the primary LD 800HSE EX fails, both devices are linked via a redundancy cable (COM).Dimensions Product Net Depth / Length: 125 mm Product Net Height: 155 mm Product Net Width: 28 mm Product Net Weight: 0.26 kg
